Copy Console APIs
The Izenda Copy Console Tool will allow you to copy templates, reports and dashboards from one Izenda Configuration database to another or within one configuration database.
The following APIs are used internally for the tool.
List of APIs
| API | Purpose |
|---|---|
| POST copyManagement/console/validate/sourcedata | Returns a distinct list of connections from selected tenant, reports, templates and dashboards. |
| POST copyManagement/console/validate/dataconsistent | Validates for consistency between source and destination, for example database server types, database mappings and data models. |
| POST copyManagement/console/validate/listusingfield |
Returns a list of all using fields in source. New in version 2.6.21. |
| POST copyManagement/console/validate/source | Validates that ids of source tenant, reports, templates and dashboards are correct. |
| POST copyManagement/console/validate/destination | Validates that destination tenants, database mappings and role mappings are correct. |
| POST copyManagement/console/loadreport | Returns all report/template and related data to be copied to another system. |
| POST copyManagement/console/copyreport | Copies report and related data to a system. |
| POST copyManagement/console/updatesubreport | Updates the content of copied reports to match destination state. |
| POST copyManagement/console/loaddashboard | Returns all dashboard and related data to be copied to another system. |
| POST copyManagement/console/copydashboard | Copies dashboard and related data to a system. |
| POST copyManagement/console/listreport | Returns a list of report definitions. |

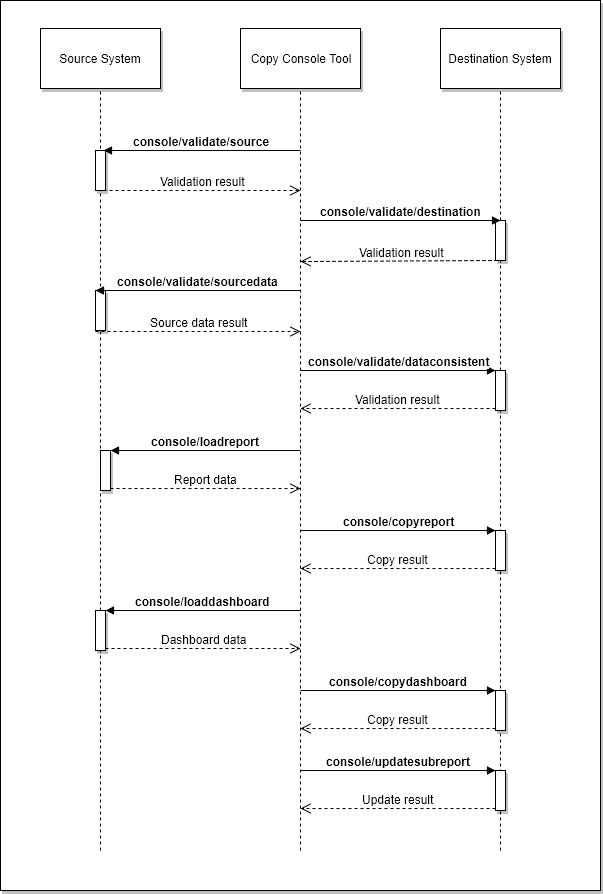

API Workflow
POST copyManagement/console/validate/sourcedata
Returns a distinct list of connections from selected tenant, reports, templates and dashboards.
Request
Payload: an InputWorkspace object with sourceTenantId, reportIds, templateIds and dashboardIds fields populated
Response
An InputWorkspace object with dataInSource field populated
Samples
POST/api/copyManagement/console/validate/sourcedataHTTP/1.1Request payload:
{"sourceTenantId":"78e5699a-6a67-471f-8374-529a80777754","reportIds":["4b6d592e-ad29-408d-a3f2-845776d555db"]}Sample response:
{"sourceTenantId":null,"reportIds":[],"reportIdsLineNumber":[],"templateIds":[],"templateIdsLineNumber":[],"dashboardIds":[],"dashboardIdsLineNumber":null,"destinationTenants":null,"dataInSource":{"dbSetupInfo":{"serverTypeId":"3d4916d1-5a41-4b94-874f-5bedacb89656","serverTypeName":"[MYSQL] MySQL","connectionString":"encrypted","connectionId":"00000000-0000-0000-0000-000000000000"},"sourceConnections":"To be updated"},"sourceLineNumber":0,"destinationLineNumber":0,"sourceTenantLineNumber":0}
POST copyManagement/console/validate/dataconsistent
Validates for consistency between source and destination, for example database server types, database mappings and data models.
Request
Payload: an InputWorkspace object with dataInSource field populated
Response
An array of strings containing the errors if available
Samples
To be updated
POST copyManagement/console/validate/listusingfield
Returns a list of all using fields in source
New in version 2.6.21.
Request
Payload: an InputWorkspace object with dataInSource field populated
Response
An array of strings containing the using fields.
Samples
Request payload:
{"reportIds":["897d01a6-ed6e-46c2-a7c1-d68e1dab5fb9","34c92a53-fe74-4fb3-b62e-d1ca3204236d"],"dashboardIds":["9d2f1d51-0e3d-44db-bfc7-da94a7581bfe"]}Sample response:
["[con;#0].[cat;#0].[Employees].[ReportsTo]","[con;#0].[cat;#0].[Employees].[EmployeeID]","[con;#0].[cat;#0].[Employees].[FirstName]","[con;#0].[cat;#0].[Employees].[LastName]"]
POST copyManagement/console/validate/source
Validates that ids of source tenant, reports, templates and dashboards are correct.
Request
Payload: an InputWorkspace object
Response
An array of strings containing the errors if available
Samples
To be updated
POST copyManagement/console/validate/destination
Validates that destination tenants, database mappings and role mappings are correct.
Request
Payload: an array of DestinationTenant objects
Response
An array of strings containing the errors if available
Samples
To be updated
POST copyManagement/console/loadreport
Returns all report/template and related data to be copied to another system.
Request
Payload: a ReportParameter object
Response
A WorkspaceDetailConsole object with reportDefinition, sourceTenantConnections, dataSourceConnections, sourceRoles and sourceUserPermissions fields populated
Samples
To be updated
POST copyManagement/console/copyreport
Copies report and related data to a system.
Request
Payload: a WorkspaceDetailConsole object, which has been fully-populated from POST copyManagement/console/loadreport
Response
An array of CopyStatus objects
Samples
Skipped because of too much data
POST copyManagement/console/updatesubreport
Updates the content of copied reports to match destination state.
Request
Payload: an UpdateSubReportInput object, with copyStatus field populated from the result of POST copyManagement/console/copyreport
Response
An array of UpdateSubReportStatus objects
Samples
To be updated
POST copyManagement/console/loaddashboard
Returns all dashboard and related data to be copied to another system.
Request
Payload: a LoadDashboard object
Response
A WorkspaceDetailConsole object with dashBoardDefinition, sourceReports, reportDefinitions, sourceRoles and sourceUserPermissions fields populated
Samples
Skipped because of too much data
POST copyManagement/console/copydashboard
Copies dashboard and related data to a system.
Request
Payload: a fully-populated WorkspaceDetailConsole object
Response
An array of CopyStatus objects
Samples
Skipped because of too much data
POST copyManagement/console/listreport
Returns a list of report definitions.
Request
Payload: an array of ReportKey objects
Response
An array of ReportDefinition objects
Samples
To be updated
