Work with Session Variables
Session variables are values that are global in scope and persistent for the life of a user session. They're very useful in Logi applications for retaining and passing data. This topic discusses the elements and techniques associated with Session variables in a Logi application, and topics include:
- About Session Variables
- Setting Session Variables
- Using @Session Tokens
- Java Session Variable Copying
- Viewing Session Variables in Debugger
About Session Variables
Session variables provide a useful way to store values that can be used anywhere in a Logi application and provide the best approximation of a real programming variable you'll find in stateless web applications. Logi application Session variables can be set in both Report and Process definitions using the Set Session Variables and Procedure.Set Session Vars elements, respectively. They can also be set by other, non-Logi applications and used in an integrated Logi application (see the Java Session Copying section for special considerations that apply to Java applications).
Session variables, of course, only exist as long as the user session lasts. The Session Timeout element can be used to manage the user session lifetime. When using Logi SecureKey authentication, the Security element in _Settings includes a Restart Session attribute that can be set to clear out all Session variables right before an attempted login. This ensures that Session variables established during a previous user's session are not re-used for the next user's session.
Session variables are of the variant data type, meaning they can be anything - strings, numbers, arrays, etc. - of any size, and that opens the door to potential abuse. It's possible to put huge amounts of data into Session variables but it's poor practice to do so, because that will negatively affect server performance. Our recommendation is that you use Session variables for small amounts of data only.
The Repeat Elements element is one of the very first things processed when a page goes through the Logi Engine. Some values, including @Session tokens set with the two Set Session elements mentioned earlier, aren't processed until later so @Session tokens should not be used with Repeat Elements.
Setting Session variables in a Report definition is very easy:

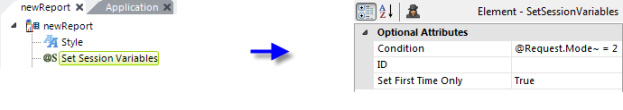

First, the Set Session Variables element is added to the definition, as shown above. Its optional attributes are also shown and can be very useful. The Condition attribute lets you specify a formula which has to evaluate to True for the Session variables to be set. The Set First Time Only attribute, if set to True, causes the Session variables to be set the first time the definition is processed but does not reset them if the report is reloaded during the current user session. The default value is False.

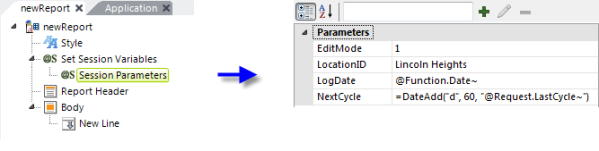

Next, a Session Parameters child element is added. This element lets you enter a list of Session variable names and their values. As shown above, the values can be numbers, strings, tokens, or even formulae. A formula can be particularly useful here, especially if you want to make the Session variable value dynamic in order to, for example, increment a counter or a date each time the report is reloaded. This is one of the few opportunities you have to make a web application variable behave like a normal programming variable.
Setting Session Variables in a Process Task
In the next example, we'll examine a similar operation in a Process definition (only available in Logi Info).

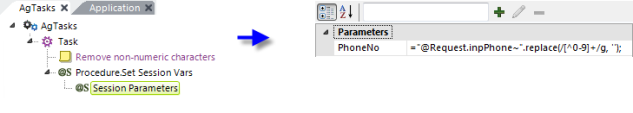

In a task shown above, a Procedure.Set Session Vars element has been added, with a child Session Parameters element. A Session variable, "PhoneNo", has been created, with a value that uses a formula to remove any non-numeric characters from a Request variable passed to the task.

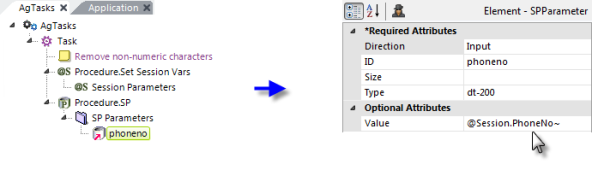

Later in the task, we can see how the @Session token is used to provide the "cleaned up" phone number value as a parameter for a SQL Stored Procedure. As we've seen, Session variables can be used in Report and Process definitions to produce very dynamic, global values.
Setting Session Variables in Global.asax
In a .NET Logi application, you can also set Session variables in the application's Global.asax file by adding code like this:
<% Session("webpath") = Request.ServerVariables("URL") %>
This code takes advantage of ASP.NET objects to assign the URL of the application to the "webpath" Session variable. In the application, the value can be accessed using the @Session.webpath~ token.
We've already seen some examples of Session variables in use. @Session tokens can be employed in a lot of places in your definitions. Here are some more usage examples:
Because Session variables are persistent across pages, they can be particularly useful in preserving values just before a Process task call. For example, suppose you have a task for user login that users can call from any page in your application. After the login task completes, you want to return the user to the page he was viewing. Here's one technique for doing this in a parameterized manner:
At the top of each report definition, use elements to create a Session
variable ("Caller") with a value of
@Request.rdReport~. This is the definition name of the report.
Each report definition, of course, has a link to the Login task.
- At the end of the Login task, use Response.Report and Target.Report elements. In the Target.Report element's Report Definition File attribute, enter the @Session.Caller~ token. This ensures the user will go back to the page he was viewing before calling the task.
@Session tokens can be used in the attributes of Connection elements, allowing you to create dynamic connections. Typically, this is done by using a Startup Process element in _Settings to run a Process task.

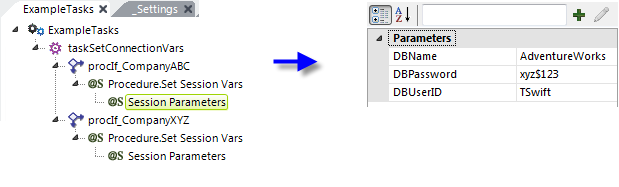

As shown above, the task uses Procedure.If and Procedure.Set Session Vars elements to set appropriate Session variables based on variable criteria.

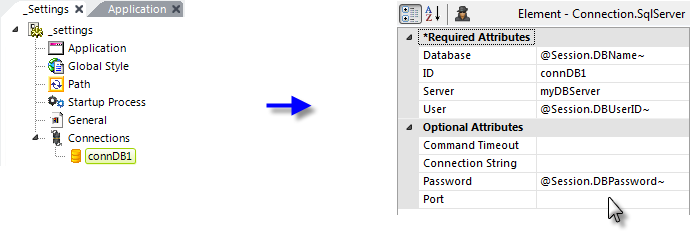

When the task completes, the Connection elements in _Settings will be processed, using @Session tokens, as shown above.
if ( '@Session.UserID~' == '' ) alert('Your session has expired.');
if ( '@Session.UserID~' != '' ) SubmitForm('rdProcess.aspx?rdProcess=someTaskID&[email protected]~', '_self','true','',null);
The code above embeds @Session tokens to determine if a user ID is present and calls a Process task if it is.
Java-based Logi applications and non-Logi Java applications may maintain their Session variables in different ways. When these two kinds of applications are integrated, they may need to "copy" Session variables so they can be shared between them. Logi Session variables are accessed via @Session tokens, while standard Java application Session variables are accessed via JSP or, in a Java program, via javax.servlet.http.HttpSession.
The Java Session Copying element, which is ignored in .NET Logi applications, can be added to the _Settings definition to enable Session variable copying between the two kinds of Java applications. It has four attributes that let you control which variables are copied, which optimizes performance. The "Include" attributes are processed first, then the "Exclude" attributes. The attributes include:
|Copy From Java Exclude||Specifies a comma-separated list of regular expressions that identify the Java application session variables that will not be copied to the Logi Info application session space. Do not use session variable names that contain spaces.|
|Copy From Java Include||Specifies a comma-separated list of regular expressions that identify the Java application session variables that will be copied to the Logi Info application session space. Do not use session variable names that contain spaces.|
|Copy To Java Exclude||Specifies a comma-separated list of regular expressions that identify the Logi Info application session variables that will not be copied to the Java application session space. Do not use session variable names that contain spaces.|
|Copy From Java Include||Specifies a comma-separated list of regular expressions that identify the Logi Info application session variables that will be copied to the Java application session space. Do not use session variable names that contain spaces.|
It is possible to have almost all session variables copied automatically, but that typically doesn't produce the best performance. However, if you want to use this behavior, create element source code like the example below and paste it into your _Settings definition XML code:
<JavaSessionCopying CopyToJavaInclude="myVar1, myVar2" CopyFromJavaInclude="myVar3, myVar4" />
The Logi Debugger Trace Page is very useful for identifying problems and includes helpful information, such as the values of all Request variables. However, it doesn't usually display Session variables. However, for .NET applications, you can enable a full trace page that will show you the Session variables and much more.
To turn on full tracing:
- Locate your Logi application's rdPage.aspx file in the application folder, as shown above.
- Use a text editor, such as Notepad, to edit the file to include Trace="True", as shown above.
The full trace page, similar to the one shown above, will now appear at the bottom of every report page and you can see the Session State section, highlighted, showing all the Session variables. You'll see quite a few that start with "rd" - these are created by the Logi Engine.
